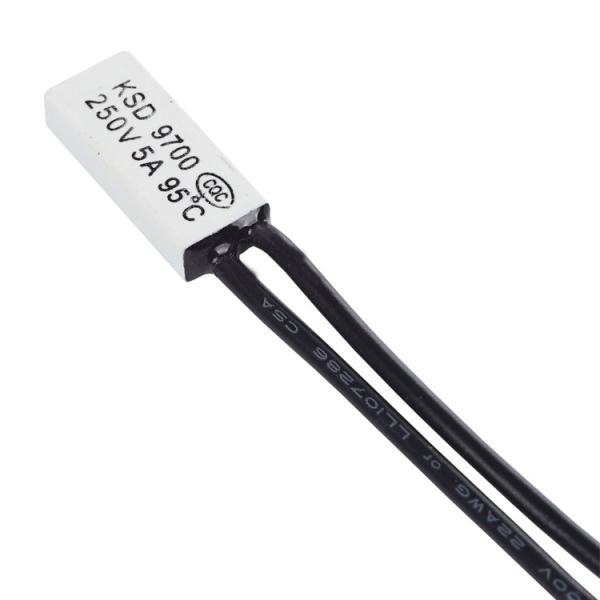

250V 5A KSD 9700 Thermal Protector Switch with wire
KSD9700.pdf
Product Description
| item Name: | 250V 5A KSD 9700 Thermal Protector Switch with wire |
| Closing Type: | Normally Closed, Normally Open |
| Rated Voltage: | 250Vac |
| Rated Current: | 5A 10A |
| Electric intensity: | >800V |
| Contact resistance: | <30mΩ |
| Insulation resistance: | >100MΩ |
| Response speed: | ≦1℃/min |
| Life cycles: | >6000(Resistive Load) |
| Tolerance: | ±5℃ |
| Approvals: | CQC |
| Wire Spec: | 22AWG, 180℃, 600V, RoHS, black, customized length |
What's the difference between N/C and N/O
Features of 250V 5A KSD 9700 Thermal Protector Switch with wire
- small size,
- quick action,
- accurate temperature control,
- large current control
- long service life
- Wide used in home appliance's motor and electrical equipment, such as air conditioner motor, transformer, thermal appliances, etc
Specification of 250V 5A KSD 9700 Thermal Protector Switch with wire
(KSD 9700 thermal switch, thermal protector, bimetal thermostat)
Dimension & Structure 250V 5A KSD 9700 Thermal Protector Switch with wire
KSD 9700-A is metal case while KSD 9700-B is plastic case.
How it works?
KSD 9700 thermal protector switch consists of dish-shape high sensitive bimetallic elements,
movable contact-head, static contact-piece, soleplate, outer case, heat-resistant leads and so
on.When it is in operation, the bimetallic elements are in a free state and the movable
contact-head and the static contace-piece are closed and the circuit is on.When the electric
appliance malfunctions and causes temperature to rise to the action temperature of the thermal
protector, inner stress is produced inside the heated bimetallic elements and the bimetallic
elements act instantly -pushes the movable contact-head away from the static contact-piece,
thus cutting off the faulty circuit and protect the appliance.When the temperature of the electric
appliance to be protected drops to the rated reset temperature, the bimetallic elements restores
to its initial state and contact is closed .The electric appliance restores its working condition.
This product has many advantages, such as low resistance, fast temperature sensing, prompt
action, safety and reliability, small size and so on.
Please Note :
- During installation, the temperature switch should be completely close to the mounting surface of the tested appliance.
- Do not collapse or deform the plastic / metal shell during installation.
- For metal temperature controller, when using, do not remove the insulating sleeve to avoid electric leakage. Not suitable for working in water.
- Not suitable for air temperature sensing, only applies to contact sensing.
-
